Azure Container Instances

Azure Container Instances is a fully managed serverless container service that enables you to deploy and manage containers in Azure without the need for virtual machines. It is ideal for event-driven applications, microservices, and batch processing workloads.

Log and metric types

For Azure Container Instances, you can collect the following logs and metrics:

Audit Logs. The activity log contains subscription-level events that track operations for each Azure resource as seen from outside that resource. For more details, refer to the Azure Documentation.
Resource Logs. Capture container creation, execution, and failure logs. Refer to the Microsoft Documentation to know about the schema for resource logs.
Metrics. Metrics for Azure Container Instances are in the following namespace:
- Microsoft.ContainerInstance/containerGroups

For more information on supported dimensions, refer to the Azure documentation.

Setup

Set up application logs collection using fluent-bit sidecar container using the http output plugin and the tail input plugin. You must explicitly enable fluent-bit collection for each container group which you want to monitor.
Metrics collection using our Azure Metrics Source.

note
Sumo Logic Metrics source is currently in Beta, to participate, contact your Sumo Logic account executive.

Configure metrics collection

To set up the Azure Metrics source in Sumo Logic, refer to Azure Metrics Source.

Configure logs collection

Prerequisite

Use existing resource group or create a new one for deploying Azure container instances.

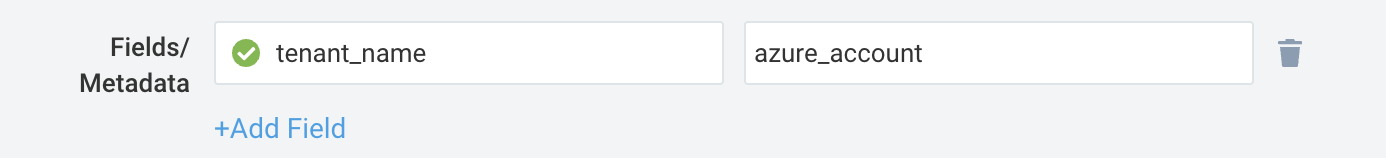

Create a hosted collector and tag the tenant_name field
Configure an HTTP Source.
Download and update the output_conf.yaml file with the following configurations:
- Inputs pipeline uses the tail input plugin. Update the path parameter value with the pattern specifying a specific log file or multiple ones through the use of common wildcards.
  info
  Multiple patterns separated by commas are also allowed.
- Outputs pipeline uses the http output plugin. Follow the below steps to update other outputs pipeline parameters:
  - format. Data format by which you can send logs to Sumo Logic. By default, the format key will be assigned with json_lines.
  - compress. Payload compression mechanism. By default, the compression is enabled and uses gzip.
  - host. Update the host depending on your Sumo Logic Orgs deployment.
  - tls. This field will be in on condition to enable the TLS support. By default, Sumo Logic only supports tls in on condition.
  - tls.verify. This field will be in off condition to disable the certificate validation. By default, Sumo Logic only supports tls.verify in off condition.
  - URI. Update the [PrivateKey] with the path present in the HTTP source endpoint as configured in the Step 1.
  - header. Update the X-Sumo-Fields header and replace the following values to enrich the logs with additional metadata, which helps with panel queries.
    - resource_name. Name of the Azure container instances resource.
    - resource_group. Name of the resource group where the Azure container instances resource is present. Ensure that you use the same resource group created in the prerequisite section.
    - subscription_id. ID associated with a subscription where the Azure container instances resource is present.
    - location. The region to which the Azure container instances resource name belongs to.
Create and push a custom fluentbit image using a Docker file and output_conf.yaml to any container repository.
Download and update the logging-sidecar-deploy.yaml file with the following configurations:
- Update the location value with the region where the Azure container instances resource will be deployed.
- Update the name value with the name of the Azure container instances resource. Ensure that this value is same as the resource_name in the output_conf.yaml file.
- Update the nginx container with your own application image whose logs you want to collect. For example, in the logging-sidecar-deploy.yaml file we have used nginx application as an example whose log files are created in a shared volume (/var/log/nginx).
- In the fluentbit container, replace the {custom-fluentbit-image-path} with the custom fluentbit image path that you created in the Step 2.
- In the imageRegistryCredentials property, enter your image repository server, username, and password.
Deploy the logging-sidecar-deploy.yaml Azure template, refer to the Azure Documentation.

Activity Logs

To collect activity logs, follow the instructions here. Skip this step if you are already collecting activity logs for a subscription.

note

Since this source contains logs from multiple regions, make sure that you do not tag this source with the location tag.

Installing the Azure Container Instances app

Now that you have set up data collection, install the Azure Container Instances Sumo Logic app to use the pre-configured dashboards that provide visibility into your environment for real-time analysis of azure resources.

To install the app:

Select App Catalog.
In the Search Apps field, search for and then select your app.
Optionally, you can scroll down to preview the dashboards included with the app. Then, click Install App (sometimes this button says Add Integration).
Click Next.
Look for the dialog confirming that your app was installed successfully.

Once an app is installed, it will appear in your Personal folder or the folder that you specified. From here, you can share it with other users in your organization. Dashboard panels will automatically start to fill with data matching the time range query received since you created the panel. Results won't be available immediately, but within about 20 minutes, you'll see completed graphs and maps.

As part of the app installation process, the following fields will be created by default:

tenant_name. This field is tagged at the collector level. You can get the tenant name using the instructions here.
location. The region to which the resource name belongs to.
subscription_id. ID associated with a subscription where the resource is present.
resource_group. The resource group name where the Azure resource is present.
provider_name. Azure resource provider name (for example, Microsoft.Network).
resource_type. Azure resource type (for example, storage accounts).
resource_name. The name of the resource (for example, storage account name).
service_type. Type of the service that can be accessed with a Azure resource.
service_name. Services that can be accessed with an Azure resource (for example, in Azure Container Instances the service is Subscriptions).

Viewing the Azure Container Instances dashboards

All dashboards have a set of filters that you can apply to the entire dashboard. Use these filters to drill down and examine the data to a granular level.

You can change the time range for a dashboard or panel by selecting a predefined interval from a drop-down list, choosing a recently used time range, or specifying custom dates and times. Learn more.
You can use template variables to drill down and examine the data on a granular level. For more information, see Filtering Dashboards with Template Variables.
Most Next-Gen apps allow you to provide the scope at the installation time and are comprised of a key (_sourceCategory by default) and a default value for this key. Based on your input, the app dashboards will be parameterized with a dashboard variable, allowing you to change the dataset queried by all panels. This eliminates the need to create multiple copies of the same dashboard with different queries.

Error Logs

The Azure Container Instance - Error Logs dashboard provides detailed information on the container activity. This dashboard also provides comprehensive overview of Total Errors, Top 10 Errors bar chart, Log Level Error distribution, Error Trend by Container, and Recent Container Logs.

Administrative Operations

The Azure Container Instances - Administrative Operations dashboard provides details on the operational activities and status of your Azure Container Instances resources.

Use this dashboard to:

Monitor the distribution of operation types and their success rates to ensure proper functioning of your Container Instances system.
Identify potential issues by analyzing the top operations causing errors and correlating them with specific users or applications.
Track recent write and delete operations to maintain an audit trail of changes made to your Azure Container Instances configuration.

Azure Container Instances - Administrative Operations

Resources

The Azure Container Instances - Resources dashboard shows average memory usage, avg CPU usage, and average network bytes received and transmitted per sec.

Use this dashboard to:

Monitor Average Memory and CPU usage with it's trend.
Monitor Average Received and Transmitted network bytes.

Policy and Recommendations

The Azure Container Instances - Policy and Recommendations dashboard provides details on policy events and recommendations for your Azure Container Instances resources.

Use this dashboard to:

Monitor the success and failure rates of policy events to ensure proper configuration and compliance.
Track and analyze recent recommendations to improve the performance and security of your Azure Container Instances setup.
Identify trends in policy events and recommendations over time to proactively address potential issues.
